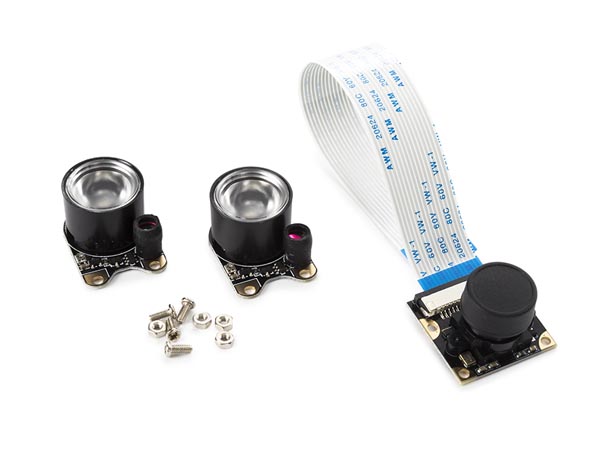

Description: If you want to add a camera to your Raspberry Pi board, but also want night vision to see in the dark, then this module is your solution! The 2 IR light boards with a built-in light sensor can be connected to the central camera module by using the supplied screws. The IR light will turn on when the build-in sensors will detect limited light in the area. Plug-and-play, tiny size, and 5 megapixels to stream in 1080p!
Features
Embedded removable IR-CUT filter, eliminating color distortion in the daylight
Comes with infrared LED, supports night vision
4 screw holes to fix the IR lights
Compatible with all Raspberry Pi Boards
Specifications
sensor: OmniVision OV5647
still resolution: 5 megapixels
video modes: 1080p @ 30fps - 720p @ 60 fps - 640x480 @ 60/90 fps
sensor resolution: 2592 x 1944 pixels
sensor image area: 3.76 x 2.74 mm
full frame SLR lens equivalent: 35 mm
focal length (adjustable): 3.6 mm
field of view (FOV): 130 degrees
aperture (F): 1.8 mm
S/N ratio: 36 dB
dynamic range: 67 dB @ 8x gain
dimensions: 22 x 25 x 15 mm (0.87 x 0.99 x 0.6")
weight: 3 g
IR lights (2): 3.3 V, fits on camera with 2 x 2 screws (included)
