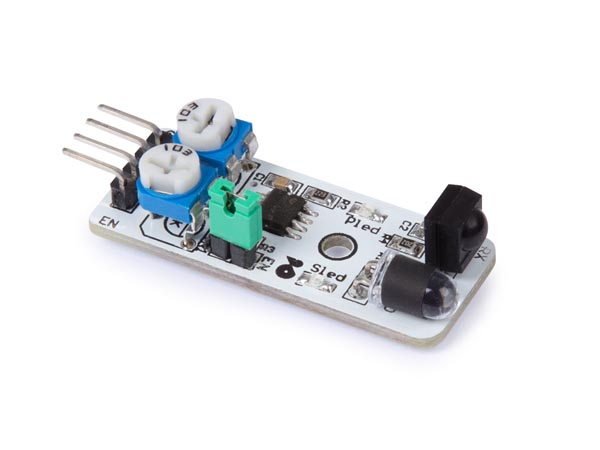

Description: This module is an inexpensive solution for an obstacle avoidance sensor, perfect for robotic projects and very easy to interface directly with Arduino® and compatible boards. The module has two potentiometers, one to control frequency and one to control the intensity.
Specifications:
operating voltage: 3.3 V to 5 V
Output: Digital (On/Off)
Detection threshold: Adjustable by 2 trimmers
distance range: 2 to 10 cm
adjustment R6: frequency adjustment 38 KHz (already optimised)
adjustment R5: IR LED power adjustment (already optimised)
Operating temperature: -10°C to +50°C
Effective angle: 35°
I/O interface: 4 wire interface (- / + / S / EN )
dimensions: 45 x 16 x 10 mm
weight: 9 g
