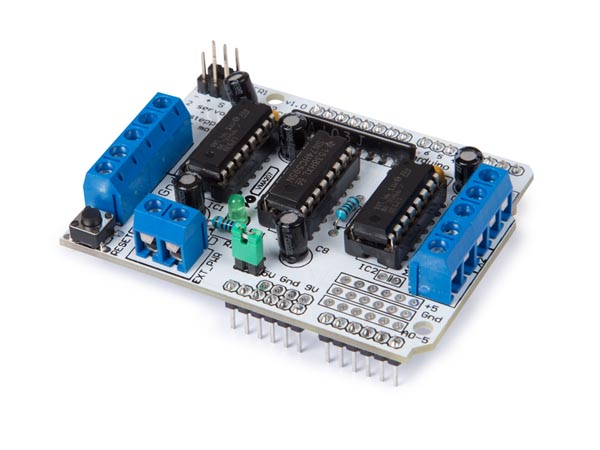

L293D Motor Drive Expansion Shield for Arduino

https://electronics123.odoo.com/web/image/product.template/9964/image_1920?unique=d4f8456
(0 review)

SKU : WPSH207
Quantity on Hand : 8
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPSH207

16.25 16.25 USD 16.25

16.25

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: This motor shield contains two motor drivers and a 74HC595 shift register and extends the pins on the Arduino from 3 to 8, which allows controlling the direction for the motor drivers.

Features:

  • Two L293D Motor driver chips
  • Four H-Bridges
  • 0.6 A per bridge (1.2 A peak)
  • Thermal shutdown protection
  • Internal kickback protection diodes
  • Up to 4 bi-directional DC motors
  • Up to 2 stepper motors
  • Pull down resistors to keep motors disabled during power-up
  • Separate logic and motor power connections
  • Terminal block connectors for motors and power
  • motor voltages from 4.5 VDC to 16 VDC
  • 2 connections for 5 V hobby servos

Specifications:

  • Dimensions: 6.8 cm x 5.5 cm x 2 cm
