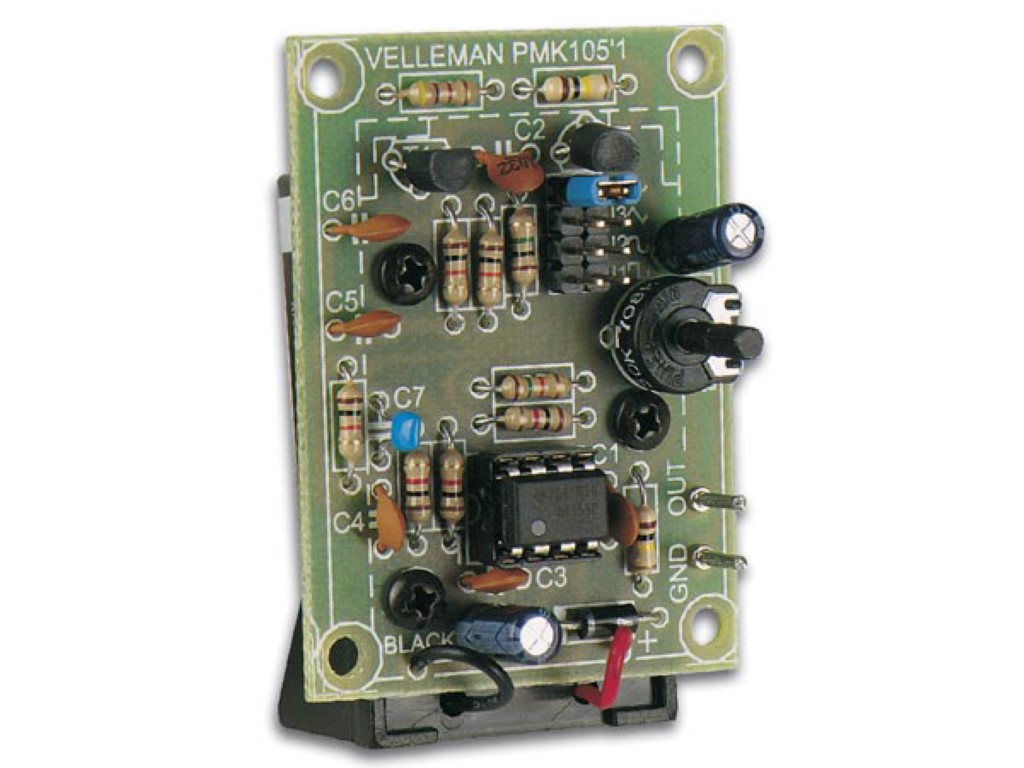

This signal generator is designed for easy monitoring and troubleshooting in, for example, audio equipment. The waveforms (sine, square wave, or triangle) and the output can be easily selected by setting jumpers. The frequency is fixed (1 kHz), and the output level is adjustable. The soldering kit works with a 9 V battery (not included).
Features:
- Signal output: sine wave, triangle, square wave and integrator (selectable through jumper)
- Signal frequency: about 1kHz (fixed)
- Output level: adjustable from 0 to 100mVrms (LEVEL potentiometer)
Specifications:
- Power supply: 9V battery (not incl.)
- Dimensions: 2.2" x 1.6"
