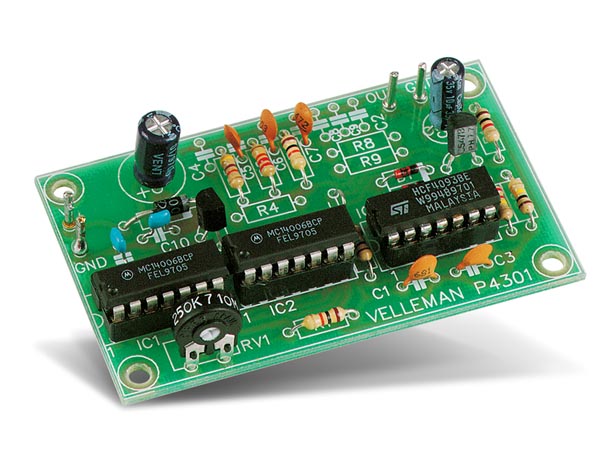

Description: A good pink noise generator and a spectrum analyzer are indispensable if you want to analyze the acoustic properties of a room (usually a living room). Moreover, you also need a microphone with a frequency characteristic that is as linear as possible (from 20Hz to 20kHz). If you have an equalizer, then the response can not only be checked but also corrected. The kit is easily adapted to produce "white noise".
Specifications:
pseudo random digital noise
regulator sliding length: 33 bit
clock frequency: adjustable between 30 and 100kHz
pink noise filter: 3dB / octave (20Hz to 20kHz)
output voltage: 150mVrms
output impedance: 1Kohm
power supply: 9 - 12VAC or 12 - 15VDC / 5mA
PCB dimensions: 72 x 43mm / 2.8 x 1.7"
