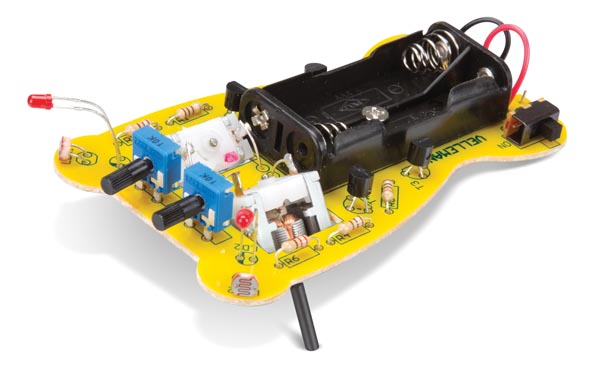

Running Microbug (Kit)

https://electronics123.odoo.com/web/image/product.template/4942/image_1920?unique=ed324b3
(0 review)

SKU : WSAK127
Quantity on Hand : 7
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSAK127

14.95 14.950000000000001 USD 14.95

14.95

Not Available For Sale

This combination does not exist.

Add to cart

      Description: Have fun building the Running Microbug minikit and watching it run towards the light. The DIY minikit circuit is built using general purpose transistors, fixed resistors, potentiometers and light sensitive resistors. These components are used to amplify and supply current to the miniature dc motors that allow the Velleman microbug to run. The circuit also has red LEDs that light when the motors are running, indicating the direction of travel. Use the potentiometers to adjust the light sensitivity. The MK127 is designed to stop in total darkness.

      Features:

      • Two open chassis sub-miniature motors

      • adjustable light-sensitivity suits almost any light condition and allows to control it's 'bug-like' behavior

      • LED 'eyes' indicate driving direction

      • stops in total darkness


      Technical Data

      Specifications
      power supply: 2 x 1.5V AAA batteries (not incl.)
      Operational Properties

      Instruction Manual Languages
      Dutch, English, French, German, Italian, Polish, Portuguese, Spanish
      Product Basic Info

      Color
      Yellow
      Depth
      100 mm
      Width
      60 mm
      Weight
      69 g
      Skill Level

      Coding Skill Level
      2
      Electronics Skill Level
      none
      Mechanics Skill Level
      none
      Soldering Skill Level
      2

      Note:

      To our valued customers:

      It has been brought to our attention that some batches of MK127/MK129 might contain motors with different polarity indications than the ones mentioned in the manuals.

      Two types are available:

      1. Motors, where the '+' is indicated by a plus-sign in a circle.

      2. Motors, with a red mark close to one of the connections. This mark indicates the MINUS of the motor.

      Future manuals will feature instructions for both types of motors.

      If you have any doubt, you can check the sense of rotation by applying 1.5..3V to the motor, using the supplied battery connector and observe the sense of rotation.

      Sorry if this has caused any confusion.

      Documentation and Downloads
