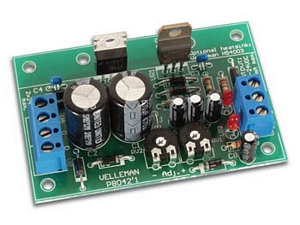

Features:
- Low cost universal symmetric power supply
- Just add a suitable transformer and a heatsink
- Ideal for e.g. op-amp applications, amplifiers, ...
- Trimmers can be replaced by potmeters to allow continuous adjustment of output voltage
- LED output indicators
- Compact size
Specifications:
- Positive and negative output adjustable between 1.2 and 24VDC
- Output current: up to 2 x 1A continuous (with suitable heatsink)
- Max. input voltage: 2 x 24VAC
- Very good line and load regulation
- Low ripple
- Short circuit protection
- Thermal protection
- Optional heat sink: HS4003 (for maximum 20W dissipation)
- Dimensions: 3.1" x 2.0" x 0.9"
