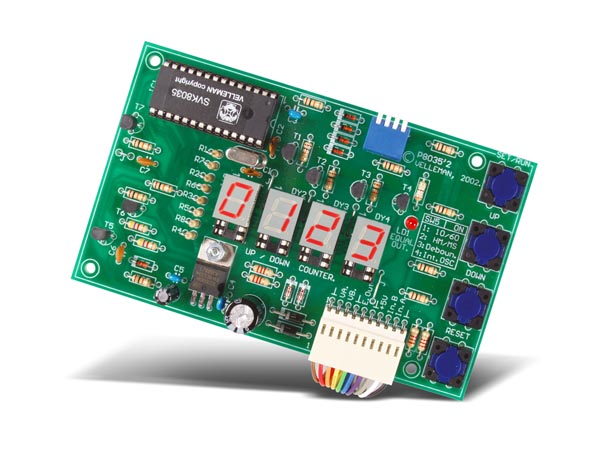

Features:
Comes in handy for people counting, part counting, score keeping, ...
Counts up or down
Count input through on-board pushbuttons or by external pulses
Display modes: normal or time (hh:mm and mm:ss)
An internal oscillator allows time measurement
Programmable pre-set value with equal output
Self diagnostic at power up
Comes with easy board-to-wire connector (20cm wire)
Optional bezel enclosure: B8035
Specifications:
Counter input voltage: 3...12V DC (normal dry contact also possible)
EQUAL output: 5V DC / max. 50mA
Max. counting speed: 200 / sec. (2 / sec. with long debounce delay)
Max. count: 4 digits (9999 / 23h59m / 59m59s)
Power supply: 9 - 12V DC or transformer 2 x 9V AC / 300mA
Power consumption: 150mA max.
Dimensions: 4.9" x 3.0"/ 125 x 75mm
