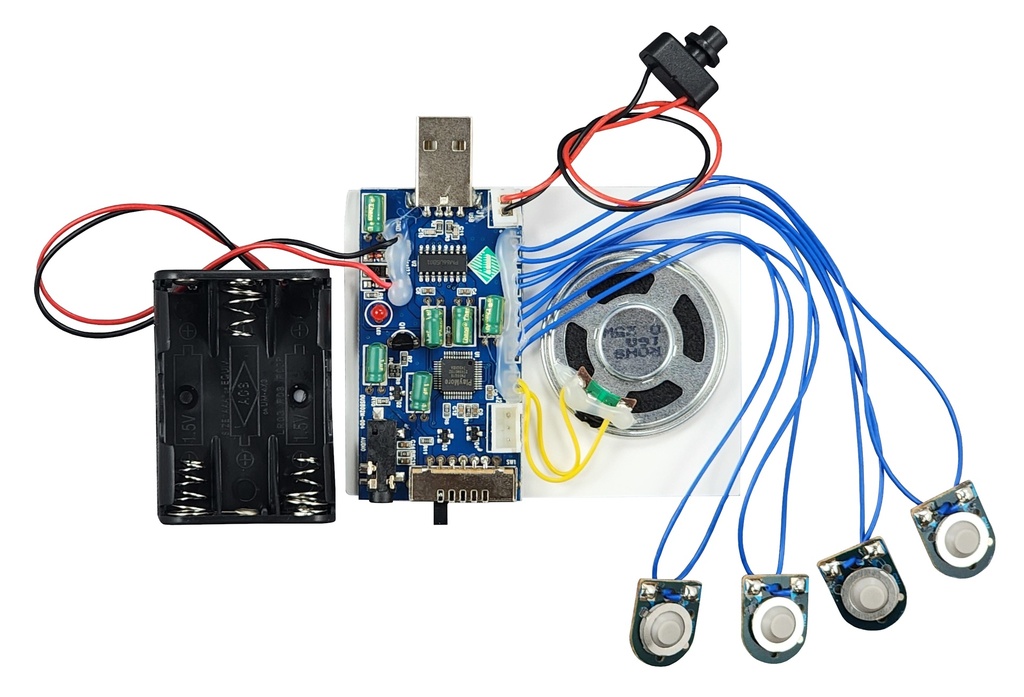

Description: This module plugs directly into the USB port of your PC. Then use the free software to record up to 300 seconds of .wav and/or .mp3 files to this module over 5 segments. Comes with a speaker and a line out for an additional amplifier or external speakers.
Playback can be triggered by any of the following: pressing one of 4 push buttons; or change in light level via the Photocell light sensor.
Features:
- 300 seconds of a re-recordable voice message on 5 segments (4 buttons and one sensor). (4.7K sample rate)
- Supports up to 4 switches and 2 sensors simultaneously
- 40mm 0.25W 16ohm metal housing mylar speaker
- 3.5mm (1/8") mono-audio output
- Supports multi-section sound
- Use USB type-A male connector for direct plug into the USB port of PC.
- Ideal for transferring custom messages for different applications.
- Adjustable sensitivity for PIR sensor
- Record sound files from PC with the provided software
- Please click the picture and see next page for software operation/download
Dimensions:
- Main Board:
- Excluding USB connector: 65mm x 35mm
- Including USB connector & slide switch : 86mm x 35mm
- Excluding USB connector: 65mm x 35mm
- Speaker: 40mm (diameter)
System Requirements:
- An unused USB port on the computer
- Windows 7 or later Click here for alternative modules that work with Apple Mac
- 3 x AAA Batteries (Not included
Specifications:
- IC Function: 300 seconds of re-recordable IC, USB controller
- Operation Current: 120mA
- Playtime: 200 times (with alkaline batteries)
- Standby Current: 200uA (with motion sensor or PIR sensor)
- Standby Current: 35uA (no sensors attached)
- Input / Switch: Push switch (play / stop)
- LED: LED playing indicator
- Speaker: 40mm metal housing mylar speaker
- Battery Type: External AAAx3 battery holder
Dimensions:
- 34mm x 64mm x 8mm (connector height)
- 40mm mylar speaker
- 3x AAA battery holder
Additional Details: | |
After you have added your sound files in the PM66Q program make sure to save your settings first by clicking on the "Save file" button, and THEN click the "PM66" button to program your module. (this is different from the previous version hardware where you could program the module directly without saving the configuration file first (see step 9 & 10 here) NOTE: When using the software for the USB6M, be sure to select "DAC for Ext.AMP" under the Voice Output tab before you program the board. Failing to do so, will make the sound distorted during playback on the module. In Windows 7 the PM66/PM66Q software must be run as administrator by right-clicking on the PM66 icon and then click to "Run as administrator" If your sound file needs to be edited whether to change to length or convert it from .wav to .mp3 or vice versa .mp3 to .wav. Please check out this free software that we use GoldWav | |
Documentation and Downloads
- FAQ
- Common Questions and Answers
- USB6M Software Manual
- USB6M Datasheet
- Software PM66QWriterV1.06_2017.11.10_setup.zip (or here is the un-zipped .exe) (Windows 10 or earlier) (If download link doesn't work with Chrome try different browser)
- PM66Q Quick Start Guide
- Legacy software (PM66) for PREVIOUS VERSION of hardware sold till May 2019, is still available from the Retired Product Page
- Click here for our USB6M troubleshooting guide
